安裝 K3s + Rancher WebUI

更新系統套件

sudo apt update && sudo apt upgrade -y

設定主機名稱與 hosts 檔案

# VM1 (Master)
sudo hostnamectl set-hostname k3s-master-171

# VM2 (Worker)
sudo hostnamectl set-hostname k3s-worker-172

# VM3 (Worker)
sudo hostnamectl set-hostname k3s-worker-173

編輯 /etc/hosts (所有節點)

sudo vi /etc/hosts

Exp. 192.168.1.171 ~ 173

192.168.1.171  k3s-master-171
192.168.1.172  k3s-worker-172
192.168.1.173  k3s-worker-173

關閉 Swap (所有節點)

sudo swapoff -a
sudo sed -i '/swap/!b; /^#/b; s/^/#/' /etc/fstab

設定防火牆規則 (若有啟用 UFW)

# Master 節點
sudo ufw allow 6443/tcp  # Kubernetes API
sudo ufw allow 2379:2380/tcp  # etcd
sudo ufw allow 10250/tcp  # Kubelet
sudo ufw allow 80/tcp  # Rancher HTTP
sudo ufw allow 443/tcp  # Rancher HTTPS

# Worker 節點
sudo ufw allow 10250/tcp  # Kubelet
sudo ufw allow 30000:32767/tcp  # NodePort Services

驗證安裝

sudo systemctl status k3s
kubectl get nodes

取得 Node Token (用於 Worker 加入)

sudo cat /var/lib/rancher/k3s/server/node-token

記錄此 Token，稍後 Worker 節點會使用

安裝 K3s Agent Exp. Master 節點的 IP 位址:192.168.1.171 , 從 Master 取得的 Token xxxxxxxxxx

curl -sfL https://get.k3s.io | K3S_URL=https://192.168.1.171:6443 \
  K3S_TOKEN=xxxxxxxxxx sh -

驗證 Worker 加入狀態, 在 Master 節點執行

kubectl get nodes

應該會看到三個節點都處於 Ready 狀態

安裝 Helm

curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bash
helm version

設定 K3s 權限

# 1. 設定永久環境變數
echo 'export KUBECONFIG=/etc/rancher/k3s/k3s.yaml' >> ~/.bashrc
# 2. 重新載入配置
source ~/.bashrc
# 3. 驗證
kubectl version
kubectl get nodes
helm version
helm list -A

新增 Rancher Helm Repository

helm repo add rancher-stable https://releases.rancher.com/server-charts/stable
helm repo update

建立 Rancher 命名空間

kubectl create namespace cattle-system

安裝 cert-manager (用於 SSL 憑證管理)

helm repo add jetstack https://charts.jetstack.io
helm repo update
helm install cert-manager jetstack/cert-manager \
  --namespace cert-manager \
  --create-namespace \
  --set crds.enabled=true

驗證 cert-manager 安裝

kubectl get pods --namespace cert-manager
kubectl get crd | grep cert-manager

等待所有 Pod 都處於 Running 狀態。

安裝 Nginx Ingress Controller

# 安裝 Nginx Ingress
helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm repo update
helm install ingress-nginx ingress-nginx/ingress-nginx \
  --namespace ingress-nginx \
  --create-namespace \
  --set controller.hostNetwork=true \
  --set controller.kind=DaemonSet \
  --set controller.service.type=ClusterIP

# 等待部署完成
kubectl wait --namespace ingress-nginx \
  --for=condition=ready pod \
  --selector=app.kubernetes.io/component=controller \
  --timeout=120s

# 檢查 Nginx Ingress Pod
kubectl get pods -n ingress-nginx

安裝 Rancher Exp. hostname : rancher.ichiayi.com, 預設 admin 密碼 admin@123

helm install rancher rancher-stable/rancher \
  --namespace cattle-system \
  --set hostname=rancher.ichiayi.com \
  --set replicas=1 \
  --set ingress.tls.source=secret \
  --set bootstrapPassword="admin@123" \
  --set ingress.ingressClassName=nginx

驗證 Rancher 部署狀態

kubectl -n cattle-system rollout status deploy/rancher
kubectl -n cattle-system get pods

瀏覽器開啟 Rancher URL Exp. https://rancher.ichiayi.com

為 app1 建立專用的 PVC Exp. app1-pvc.yaml

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: app1-data-pvc
  namespace: default  # 改成您的 namespace
spec:
  storageClassName: nfs-client
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi  # 根據需求調整大小(只是註記, 無法真的限制)

kubectl apply -f app1-pvc.yaml

驗證 PV 和 PVC 狀態

kubectl get pv
kubectl get pvc -n default

Exp.

jonathan@k3s-master-171:~/app1$ kubectl get pv
NAME                                       CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                                         STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
pv-nfs-subdir-external-provisioner         10Mi       RWO            Retain           Bound    default/pvc-nfs-subdir-external-provisioner                  <unset>                          4m10s
pvc-ea1739ec-04dd-4549-952b-490bf07ec186   10Gi       RWX            Delete           Bound    default/app1-data-pvc                         nfs-client     <unset>                          56s
jonathan@k3s-master-171:~/app1$ kubectl get pvc -n default
NAME                                  STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
app1-data-pvc                         Bound    pvc-ea1739ec-04dd-4549-952b-490bf07ec186   10Gi       RWX            nfs-client     <unset>                 63s
pvc-nfs-subdir-external-provisioner   Bound    pv-nfs-subdir-external-provisioner         10Mi       RWO                           <unset>                 4m17s

在 NFS Server 上建立的路徑為 /sharenfsdir/{PVC.namespace}/${.PVC.name} Exp.

swarm-nfs-159:/swarmdata# tree | more
.
├── default
│   └── app1-data-pvc
:

部署應用 Exp. app1-deployment.yaml

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app1
  namespace: default
  labels:
    app: app1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: app1
  template:
    metadata:
      labels:
        app: app1
    spec:
      containers:
      - name: app1
        image: busybox:latest
        command: ["/bin/sh"]
        args:
        - "-c"
        - |
          # 建立測試檔案
          echo "Container started at $(date)" > /data/startup.log
          echo "DATA_DIR: $DATA_DIR" >> /data/startup.log

          # 每 60 秒寫入一次心跳
          while true; do
            echo "Heartbeat: $(date)" >> /data/heartbeat.log
            ls -la /data/ > /data/file-list.txt
            sleep 60
          done
        volumeMounts:
        - name: app1-data
          mountPath: /data
        env:
        - name: DATA_DIR
          value: /data
        resources:
          requests:
            memory: "64Mi"
            cpu: "100m"
          limits:
            memory: "128Mi"
            cpu: "200m"
      volumes:
      - name: app1-data
        persistentVolumeClaim:
          claimName: app1-data-pvc

kubectl apply -f app1-deployment.yaml

檢查 Pod 狀態

kubectl get pods -n default
kubectl describe pod <pod-name> -n default

查看 NFS 目錄內是否有正確產生檔案

swarm-nfs-159:/swarmdata/default/app1-data-pvc# ls -lt
total 12
-rw-r--r--    1 root     root           339 Nov 26 11:40 file-list.txt
-rw-r--r--    1 root     root            80 Nov 26 11:40 heartbeat.log
-rw-r--r--    1 root     root            66 Nov 26 11:39 startup.log
swarm-nfs-159:/swarmdata/default/app1-data-pvc# cat startup.log
Container started at Wed Nov 26 03:39:31 UTC 2025
DATA_DIR: /data
swarm-nfs-159:/swarmdata/default/app1-data-pvc# cat heartbeat.log
Heartbeat: Wed Nov 26 03:39:31 UTC 2025
Heartbeat: Wed Nov 26 03:40:31 UTC 2025
swarm-nfs-159:/swarmdata/default/app1-data-pvc# cat file-list.txt
total 16
drwxrwxrwx    2 root     root          4096 Nov 26 03:39 .
drwxr-xr-x    1 root     root          4096 Nov 26 03:39 ..
-rw-r--r--    1 root     root             0 Nov 26 03:40 file-list.txt
-rw-r--r--    1 root     root            80 Nov 26 03:40 heartbeat.log
-rw-r--r--    1 root     root            66 Nov 26 03:39 startup.log

驗證與除錯

# 檢查 PVC 是否綁定成功
kubectl get pvc app1-data-pvc -n default

# 查看 Pod-name
kubectl get pods -n default | grep app1

# 查看 Pod 內的掛載情況 Exp. app1-584b58d766-qwrqk
kubectl exec -it app1-584b58d766-qwrqk -n default -- df -h

# 測試寫入
kubectl exec -it app1-584b58d766-qwrqk -n default -- sh -c "echo 'test' > /data/test.txt"

# 在 NFS Server 上確認
# 檢查檔案是否出現在 192.168.1.159:/swarmdata/default/app1-data-pvc/test.txt

停止使用 PVC 的應用

# 先刪除正在使用 PVC 的 Deployment/Pod
kubectl delete deployment app1 -n default

# 確認 Pod 已完全終止
kubectl get pods -n default | grep app1

# 如果有 StatefulSet 或其他資源也在使用，也需要刪除
kubectl get all -n default | grep app1

刪除 PVC

# 刪除 PVC
kubectl delete pvc app1-data-pvc -n default

# 檢查 PVC 狀態
kubectl get pvc -n default

如果 PVC 卡在 Terminating 狀態：

# 查看是否有 finalizer 阻止刪除
kubectl get pvc app1-data-pvc -n default -o yaml | grep finalizers

# 如果需要強制刪除 (謹慎使用)
kubectl patch pvc app1-data-pvc -n default -p '{"metadata":{"finalizers":null}}'

使用 helm uninstall 移除

helm uninstall rancher -n cattle-system
# 可能會出現 Error: uninstallation completed with 1 error(s): 1 error occurred: * job rancher-post-delete failed: BackoffLimitExceeded

使用 kubectl 命令移除與檢查

# Step 1：刪除卡住的 post-delete job
kubectl -n cattle-system delete job rancher-post-delete
# Step 2：手動刪除 Rancher 相關所有資源
# 刪除 deployment / pod
kubectl -n cattle-system delete deployment rancher
kubectl -n cattle-system delete pod -l app=rancher
# 刪 webhook
kubectl -n cattle-system delete deployment rancher-webhook
# 刪所有 secret（⚠️不會刪掉 cluster，其它 workload 都不會受影響）
kubectl -n cattle-system delete secret --all
# 刪 configmap
kubectl -n cattle-system delete configmap --all
# Step 3：確保 namespace 乾淨
kubectl get all -n cattle-system
# 應該只剩下 K3s 建立的一個 service, 如果有其他的 Job or Pod 要全部刪除

取得 Cloudflare API Token Exp. 具有編輯 DNS : ichiayi.com 權限的 Token Exp. xxxxxxcfapitkoenxxxxxx

創建 Cloudflare API Token Secret

kubectl create secret generic cloudflare-api-token-secret \
  --from-literal=api-token=xxxxxxcfapitkoenxxxxxx \
  -n cert-manager

創建 ClusterIssuer Exp. letsencrypt-cloudflare-issuer.yaml

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-prod
spec:
  acme:
    # Let's Encrypt production server
    server: https://acme-v02.api.letsencrypt.org/directory
    email: [email protected]  # 修改為您的 email
    privateKeySecretRef:
      name: letsencrypt-prod
    solvers:
    - dns01:
        cloudflare:
          apiTokenSecretRef:
            name: cloudflare-api-token-secret
            key: api-token

套用設定

kubectl apply -f letsencrypt-cloudflare-issuer.yaml

為 Rancher 創建 Certificate Exp. rancher-certificate.yaml

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: rancher-tls
  namespace: cattle-system
spec:
  secretName: tls-rancher-ingress  # Rancher 使用的 secret 名稱
  issuerRef:
    name: letsencrypt-prod
    kind: ClusterIssuer
  commonName: rancher.ichiayi.com  # 修改為您的域名
  dnsNames:
  - rancher.ichiayi.com            # 修改為您的域名

套用設定

kubectl apply -f rancher-certificate.yaml

驗證憑證狀態

# 查看 Certificate 狀態
kubectl get certificate -n cattle-system

# 查看詳細資訊
kubectl describe certificate rancher-tls -n cattle-system

# 查看 cert-manager 日誌
kubectl logs -n cert-manager -l app=cert-manager -f

查看憑證續期狀態

kubectl get certificate -n cattle-system -w

在 DNS 建立一筆萬用記錄, 對應到 K3s Node 的 IP Exp. *.k3s.ichiayi.com → 192.168.1.171

沿用上面的 Cloudflare API Token Secret / ClusterIssuer

建立萬用字元憑證 Exp. *.k3s.ichiayi.com → k3s-certificate.yaml

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: wildcard-k3s-ichiayi-com
  namespace: default  # 或你要使用的 namespace
spec:
  secretName: wildcard-k3s-ichiayi-com-tls
  issuerRef:
    name: letsencrypt-prod
    kind: ClusterIssuer
  commonName: "*.k3s.ichiayi.com"
  dnsNames:
  - "*.k3s.ichiayi.com"

kubectl apply -f k3s-certificate.yaml

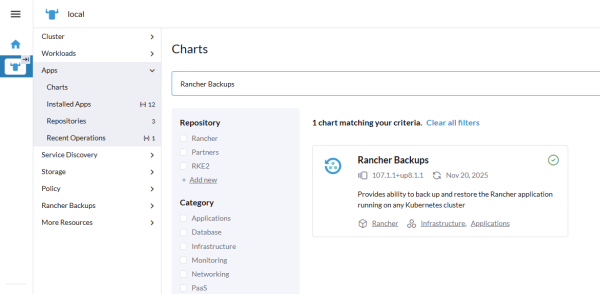

透過 Web UI 的 App Chart 安裝 Rancher Backups

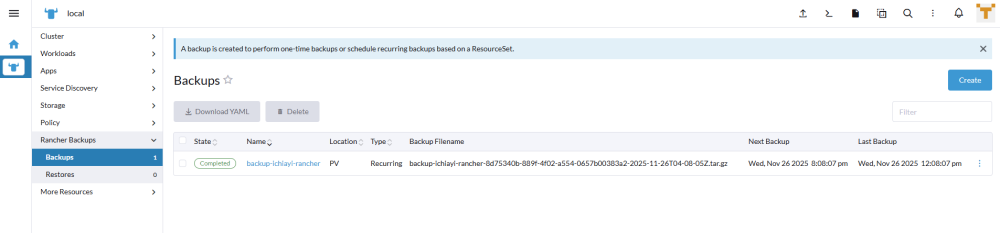

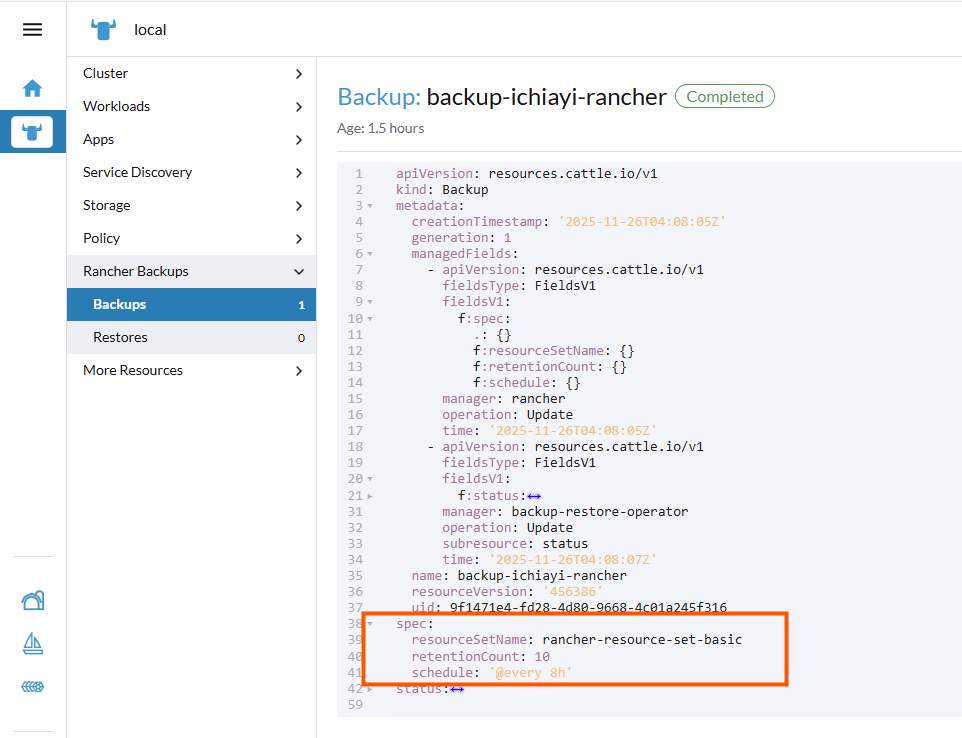

在選單新增的 Rancher Backups 選項點選 Buckups → Create → 選擇備份的目標 Exp. StorageClasses → Edit YAML 設定每 8 小時備份一次

更新 Helm Repository

helm repo update

查看可用的版本

helm search repo rancher-stable/rancher --versions

備份當前配置

kubectl get all -n cattle-system -o yaml > rancher-backup.yaml

執行更新

helm upgrade rancher rancher-stable/rancher \
  --namespace cattle-system \
  --reuse-values

驗證更新狀態

kubectl -n cattle-system rollout status deploy/rancher
kubectl -n cattle-system get pods

安裝 System Upgrade Controller

kubectl apply -f https://github.com/rancher/system-upgrade-controller/releases/latest/download/system-upgrade-controller.yaml

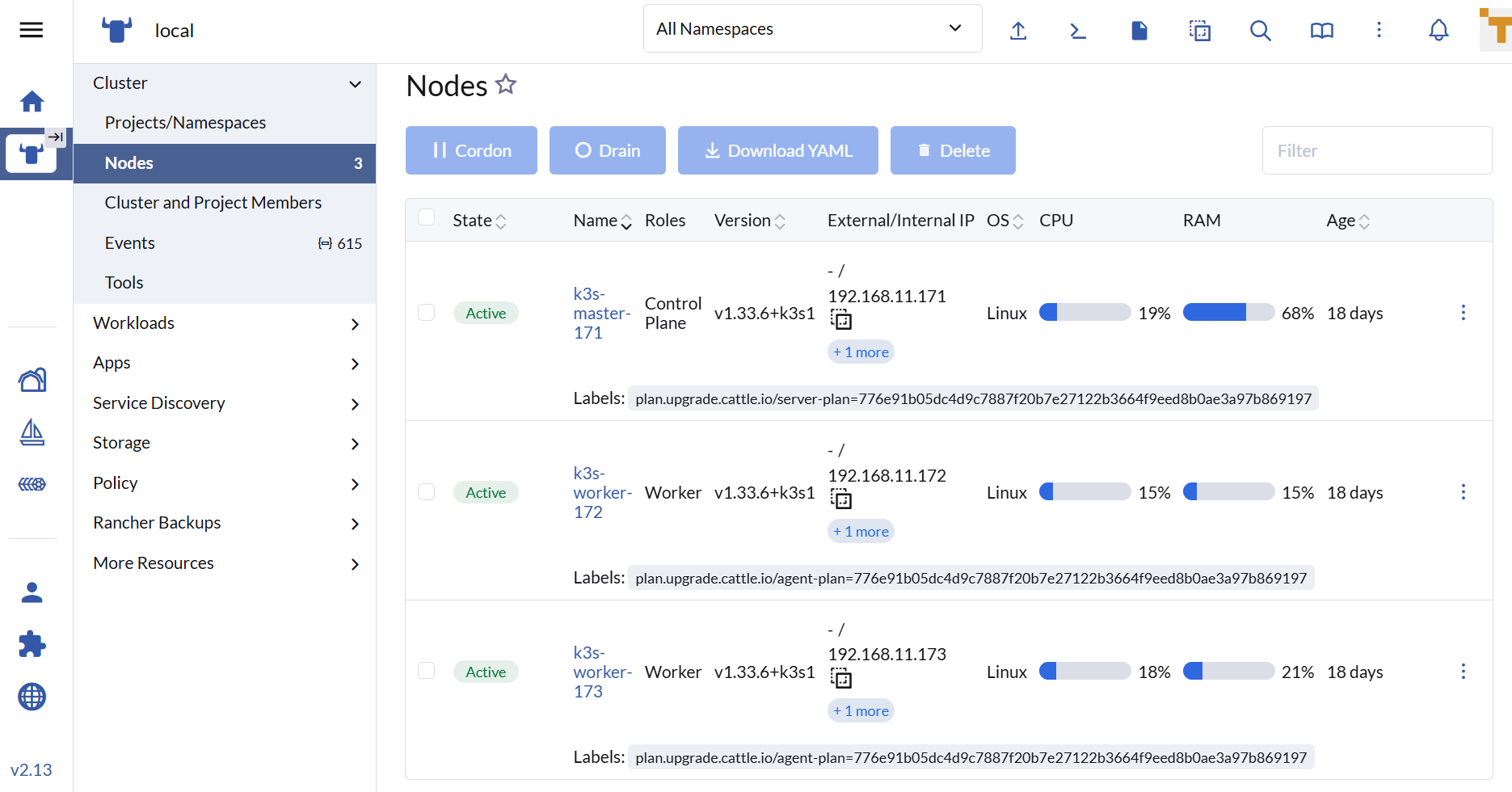

建立自動升級計畫(監看 k3s 的 stable channel 版本自動升級)

cat <<EOF | kubectl apply -f -
---
# Server 升級計畫
apiVersion: upgrade.cattle.io/v1
kind: Plan
metadata:
  name: server-plan
  namespace: system-upgrade
spec:

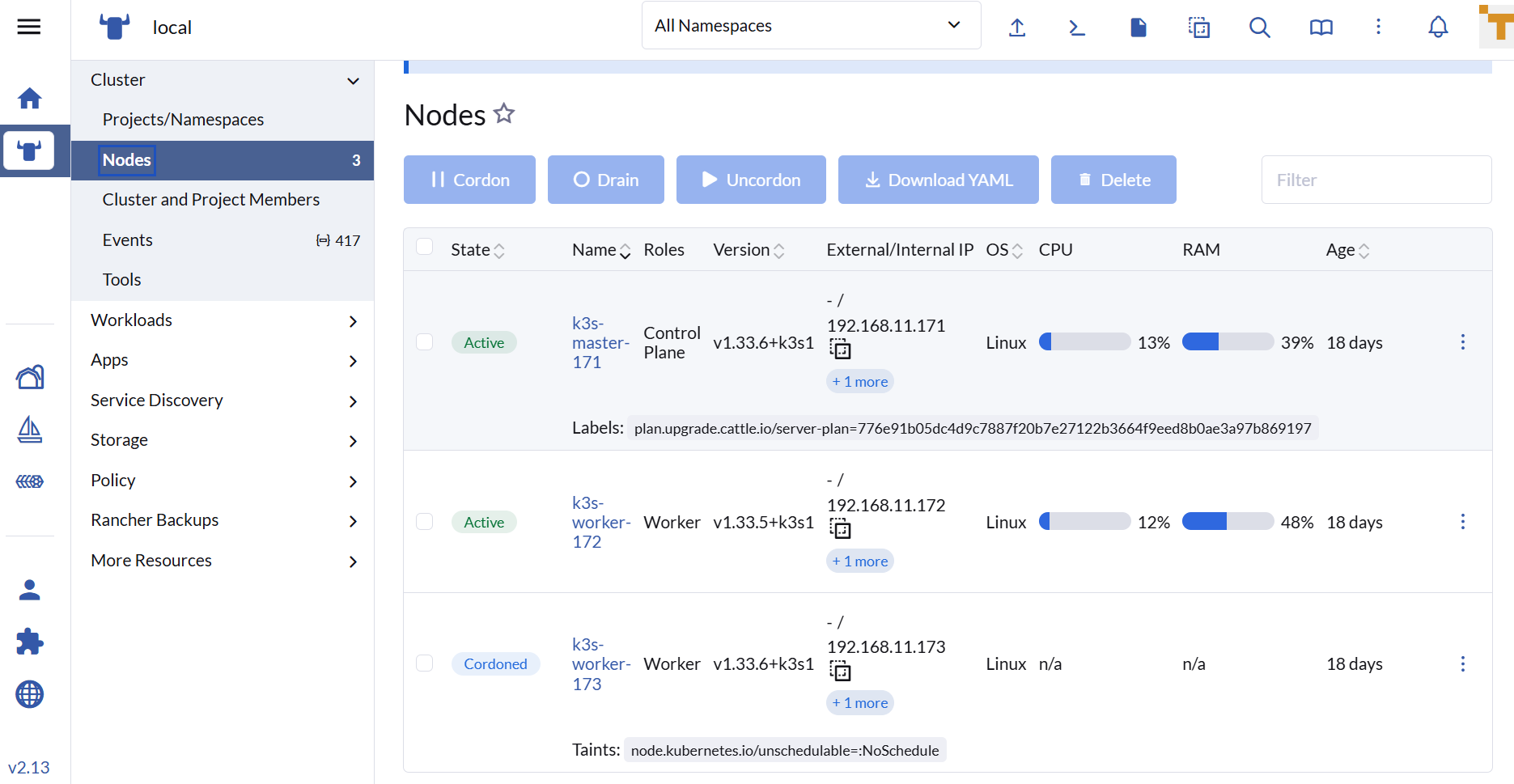

  concurrency: 1  # 一次升級一個節點
  cordon: true
  nodeSelector:
    matchExpressions:
    - key: node-role.kubernetes.io/control-plane
      operator: In
      values:
      - "true"
  serviceAccountName: system-upgrade
  upgrade:
    image: rancher/k3s-upgrade
  channel: https://update.k3s.io/v1-release/channels/stable
  drain:
    force: false
    ignoreDaemonSets: true
    deleteLocalData: true
    timeout: 300s  # 5 分鐘超時
---
# Agent 升級計畫
apiVersion: upgrade.cattle.io/v1
kind: Plan
metadata:
  name: agent-plan
  namespace: system-upgrade
spec:
  concurrency: 1  # 一次只升級一個 agent
  cordon: true
  nodeSelector:
    matchExpressions:
    - key: node-role.kubernetes.io/control-plane
      operator: DoesNotExist
  prepare:
    args:
    - prepare
    - server-plan
    image: rancher/k3s-upgrade
  serviceAccountName: system-upgrade
  upgrade:
    image: rancher/k3s-upgrade
  channel: https://update.k3s.io/v1-release/channels/stable
  drain:
    force: false
    ignoreDaemonSets: true
    deleteLocalData: true
    timeout: 300s
EOF

刪除 Plan（停止所有自動升級）

kubectl delete plan server-plan agent-plan -n system-upgrade

修改為固定版本 Exp. v1.33.6+k3s1（不再自動追蹤新版本）

kubectl patch plan server-plan -n system-upgrade --type=merge -p '{"spec":{"version":"v1.33.6+k3s1","channel":null}}'

刪除整個 controller（完全停用）

kubectl delete ns system-upgrade

取得 Discord Webhook URL Exp. https://discord.com/api/webhooks/144xxxxxxxxxxxxxxxx/xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxV5ffPyEp

修改配置並部署

# 下載 k3s-discord-notifier.yaml
curl -o k3s-discord-notifier.yaml https://raw.githubusercontent.com/tryweb/k3s/refs/heads/main/systools/k3s-discord-notifier.yaml

# 替換你的 Discord Webhook URL Exp. https://discord.com/api/webhooks/144xxxxxxxxxxxxxxxx/xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxV5ffPyEp
sed -i 's|https://discord.com/api/webhooks/YOUR_WEBHOOK_ID/YOUR_WEBHOOK_TOKEN|https://discord.com/api/webhooks/144xxxxxxxxxxxxxxxx/xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxV5ffPyEp|' k3s-discord-notifier.yaml

# 修改叢集名稱(可選) Exp. ichiayi K3s
sed -i 's|我的 K3s 叢集|ichiayi K3s|' k3s-discord-notifier.yaml

# 部署 Discord 通知
kubectl apply -f k3s-discord-notifier.yaml

驗證部署

# 檢查 notifier 是否運行
kubectl get deployment -n system-upgrade k3s-upgrade-notifier

# 查看日誌
kubectl logs -n system-upgrade -l app=k3s-upgrade-notifier -f

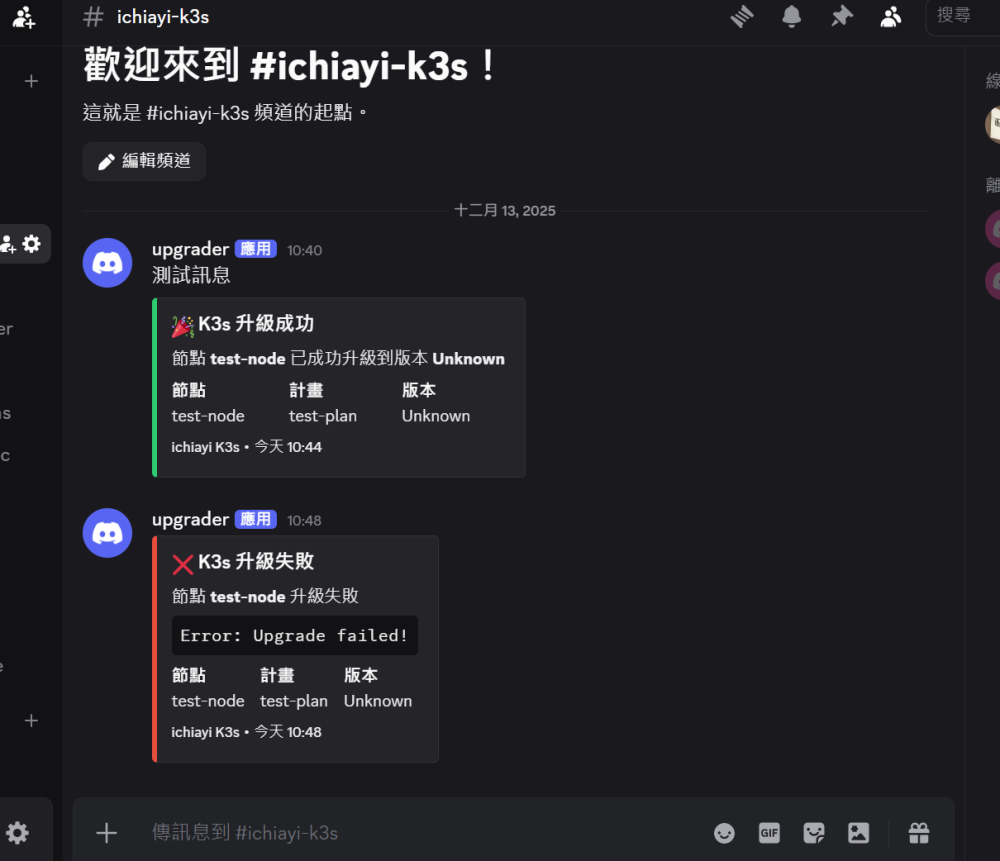

# 測試 Discord 升級成功通知
cat <<EOF | kubectl apply -f -
apiVersion: batch/v1
kind: Job
metadata:
  name: test-notify-success
  namespace: system-upgrade
  labels:
    upgrade.cattle.io/plan: "test-plan"
    upgrade.cattle.io/node: "test-node"
spec:
  template:
    metadata:
      labels:
        upgrade.cattle.io/plan: "test-plan"
    spec:
      containers:
      - name: test
        image: busybox
        command: ["sh", "-c", "echo 'Upgrade successful'; sleep 5"]
      restartPolicy: Never
  backoffLimit: 0
EOF

# 測試 Discord 升級失敗通知
cat <<EOF | kubectl apply -f -
apiVersion: batch/v1
kind: Job
metadata:
  name: test-notify-fail
  namespace: system-upgrade
  labels:
    upgrade.cattle.io/plan: "test-plan"
    upgrade.cattle.io/node: "test-node"
spec:
  template:
    metadata:
      labels:
        upgrade.cattle.io/plan: "test-plan"
    spec:
      containers:
      - name: test
        image: busybox
        command: ["sh", "-c", "echo 'Error: Upgrade failed!'; exit 1"]
      restartPolicy: Never
  backoffLimit: 0
EOF


清理測試 Job
# 刪除測試 Job
kubectl delete job test-notify-success test-notify-fail -n system-upgrade
